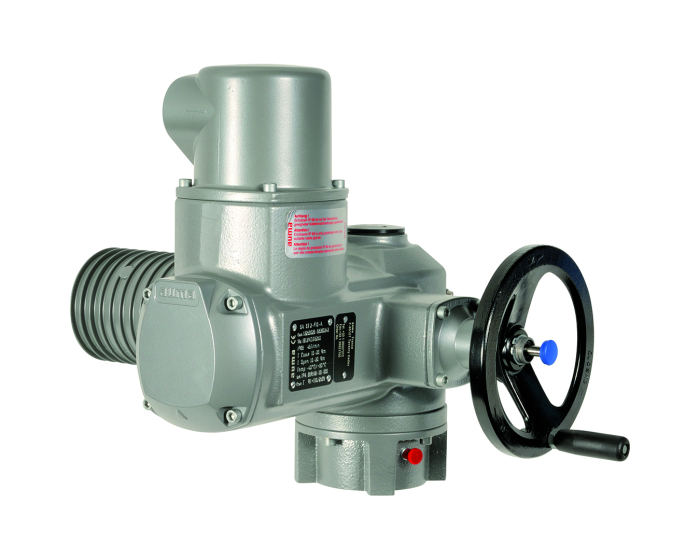

Multi-turn electric actuator SA07.6 400V 45rpm 60Nm f/non-rising stem
The Electric actuator AUMA SA range, on/off service. Voltage: 230 Vac or 400 V Tri. Service S2 - 15 min. Torque limiter. Manual override.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S102724 |
| CE_CERT | CE |
| Electrical connection | By gland packing |
| ISO pad 5211 | F10 |
| Manual override | By handwheel |
| Product | Reference |
| Protection index (IP) | IP 68 |
| SKU | 027026 |
| Voltage | 3-400 V |
| Warranty period | 1 year |
| Anti-condensation heater | Standard |
| Declutchable | Yes |
| Duty service | S2 duty service - 15 min |
| Electric actuator series | SA series (AUMA) |
| Electric actuator type | SA 07.6 |
| Function | On-off |
| Positive safety | No |
| Power (W) | 200 |
| Produit Multi-turn electric actuator SA07.6 400V 45rpm 60Nm f/non-rising stem | érence 027026 |
| Recommended location | Outdoor |
| Torque limiter | Yes |
